Rooftop Support Systems for Mission-Critical Cooling

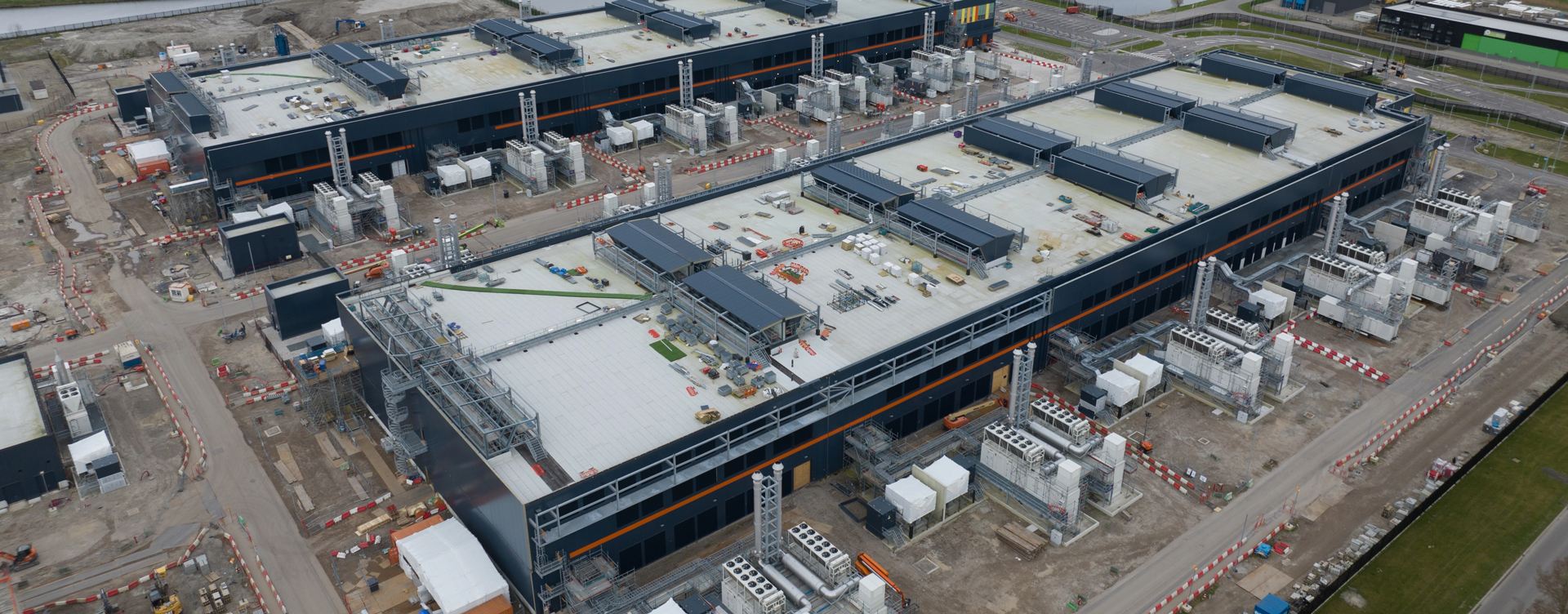

Data center HVAC systems support mission-critical infrastructure where downtime is not acceptable. Rooftop cooling layouts are often dense, redundant, and engineered for continuous operation.

At Rooftop Support Systems, we understand that supporting these systems requires more than just placing equipment on the roof. Platforms, equipment supports, pipe and conduit supports, walkways, and restraint solutions must work together across the entire layout. Our fully integrated line of products promote large-scale cooling installations by helping maintain consistency across expansive mechanical footprints.

Through delegated design services, RTS will design and engineer your complete rooftop support solution, providing coordinated layouts and submittal documentation aligned with project requirements.

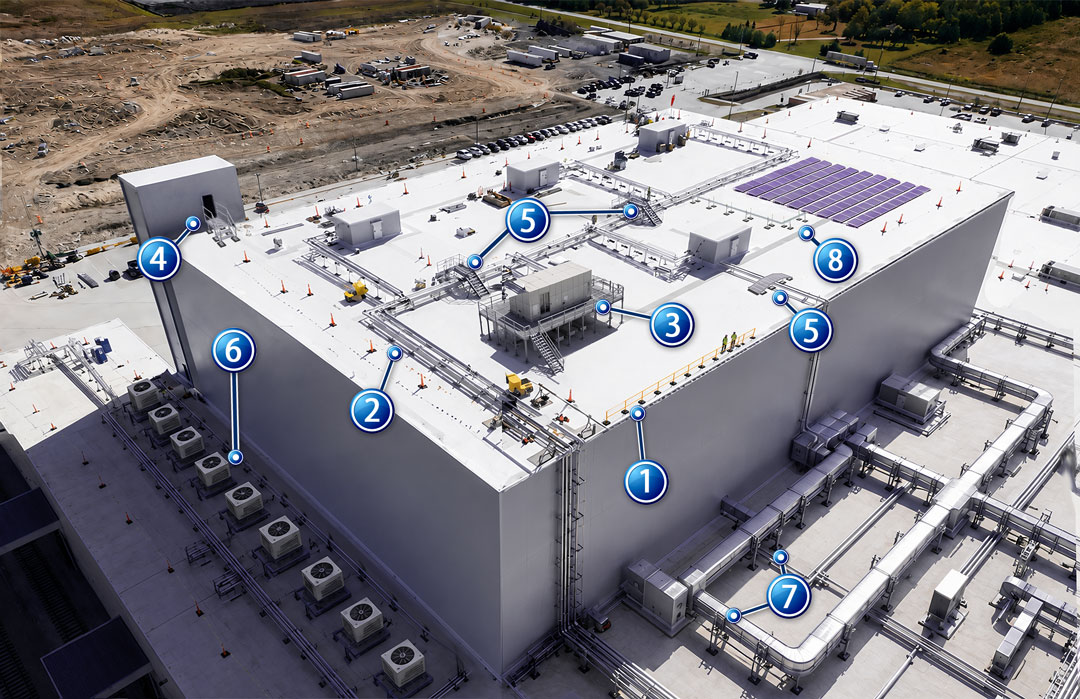

data center solutions

Roof Guard Rail | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

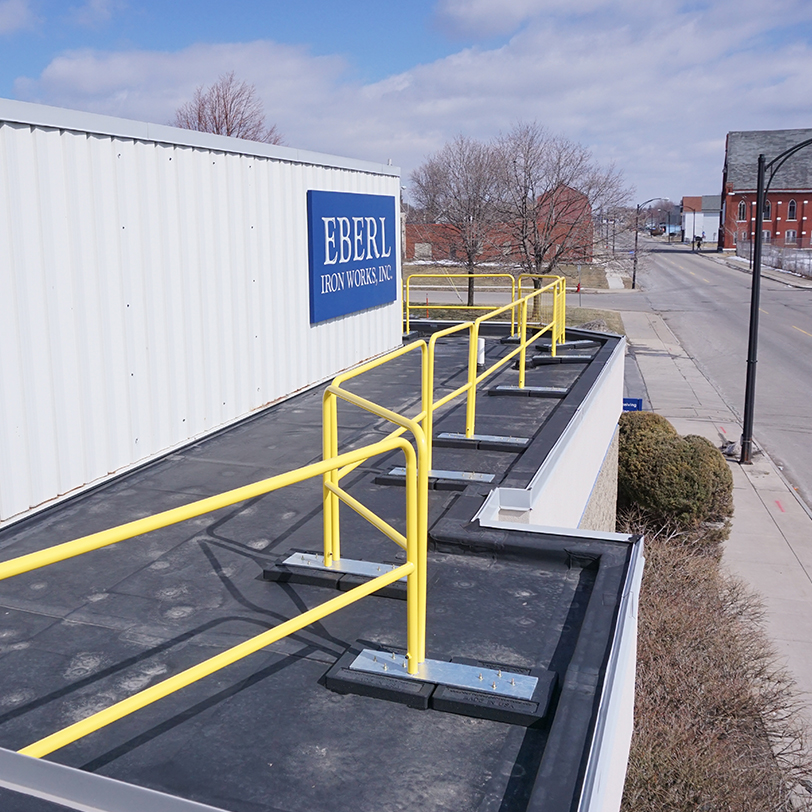

(1) ROOF GUARD RAIL

  • Protect technicians servicing rooftop mechanical equipment
  • Provide fall protection along roof perimeters
  • Define safe zones around elevated service areas
Roof Pipe & Conduit Supports | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

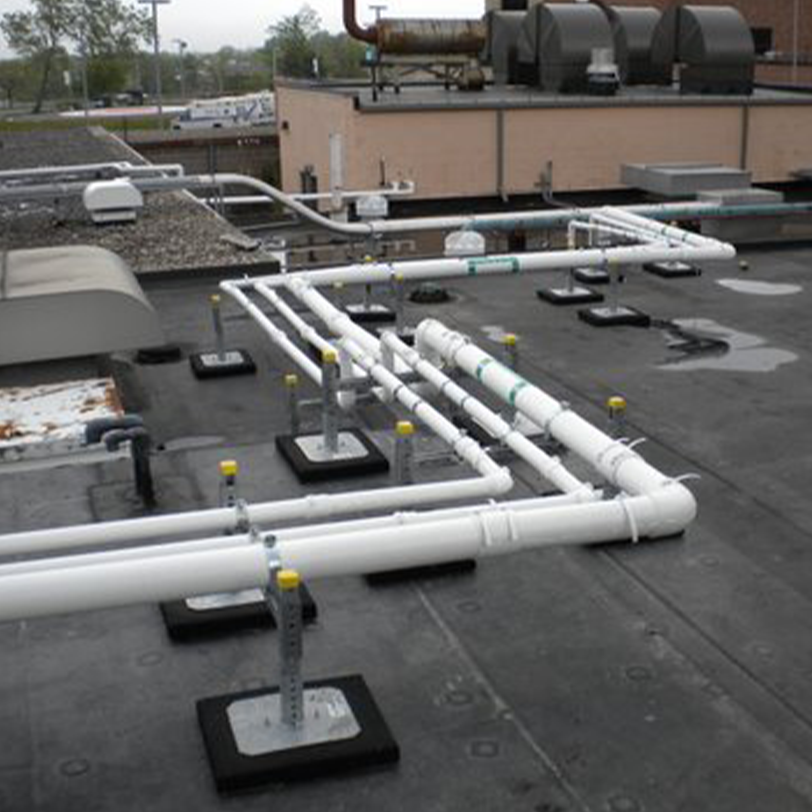

(2) PIPE/CONDUIT SUPPORTS

  • Organize rooftop piping for cooling systems
  • Elevate conduit runs above roof surface
  • Support parallel mechanical lines across large roofs
Rooftop Support Systems Custom Maintenance Platform | RTS | Rooftop Support Systems | a Division of Eberl Iron Works, Inc. | Buffalo, NY

(3) MAINTENANCE PLATFORMS

  • Allow safe maintenance of large rooftop mechanical arrays
  • Provide level service areas around clustered groups of cooling equipment
  • Create stable footing between tightly spaced HVAC units
Roof Access Platforms | OSHA Compliant | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

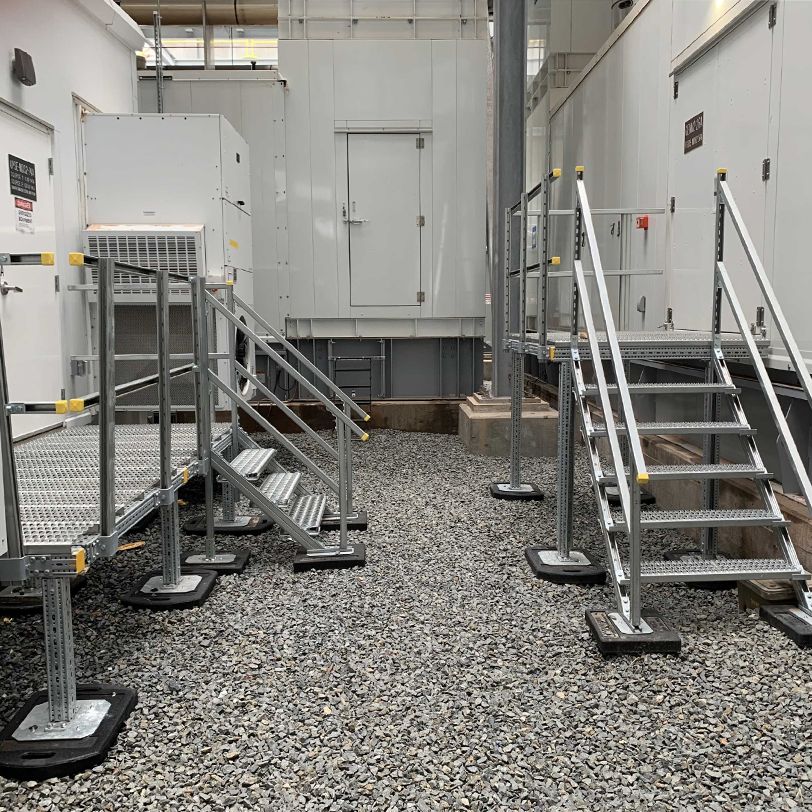

(4) ACCESS PLATFORMS

  • Provide dedicated access to critical rooftop systems
  • Bridge elevation changes between mechanical equipment groupings
  • Improve technician access in high-density cooling layouts

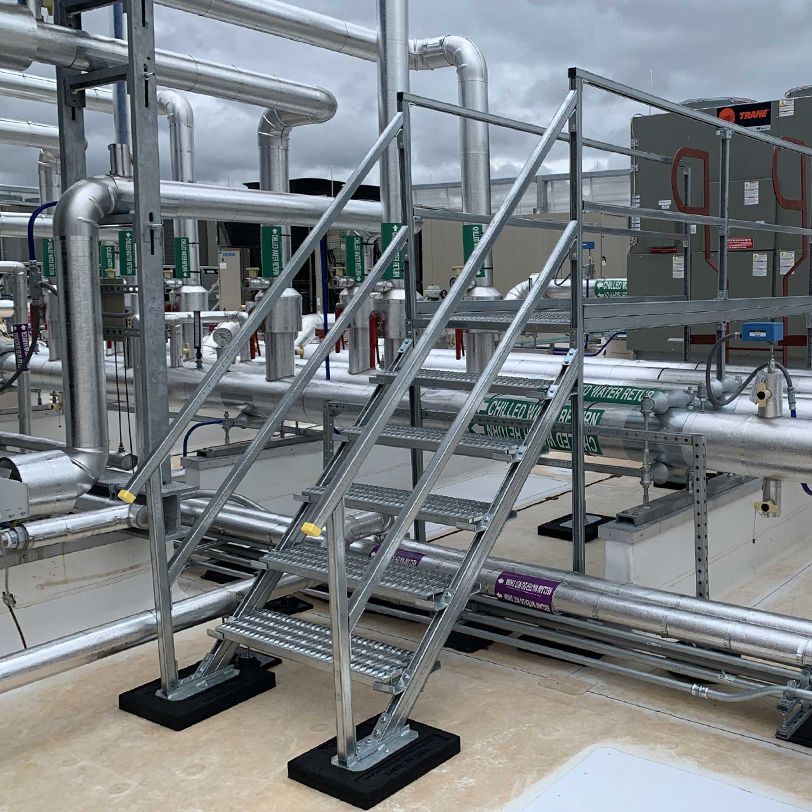

(5) ROOF STAIRS

  • Allow elevation changes across multi-level equipment areas
  • Provide safe access over rooftop obstacles
  • Improve movement between cooling system elevations
Equipment Supports | Condenser Stands | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

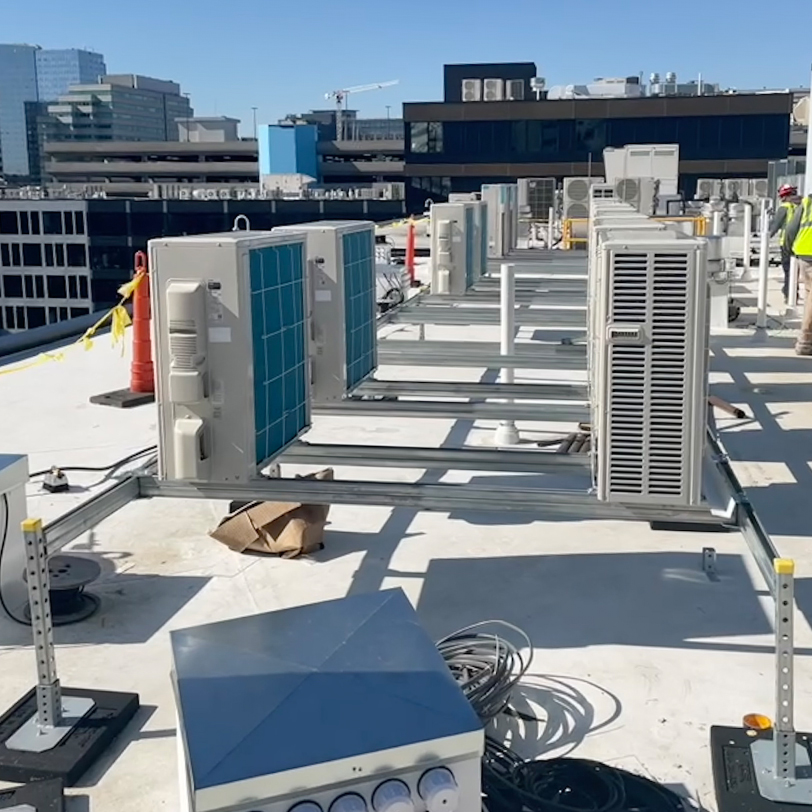

(6) EQUIPMENT SUPPORTS

  • Elevate cooling units above roof’s surface
  • Provide stable bases for critical HVAC equipment
  • Support distributed rooftop mechanical system layouts

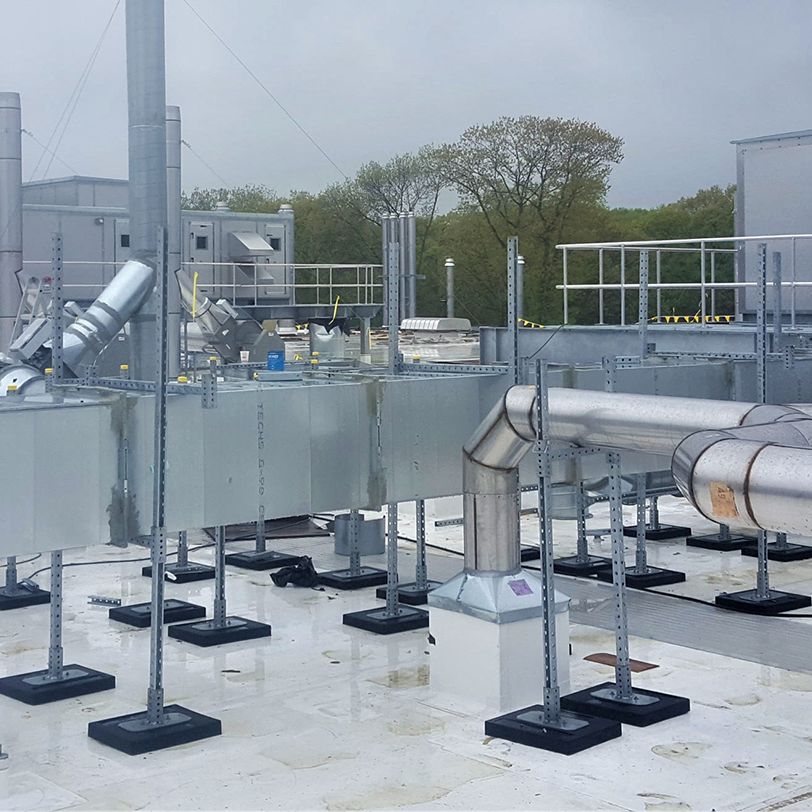

(7) DUCT SUPPORTS

  • Support large duct runs serving cooling systems
  • Maintain airflow clearance above membrane surface
  • Stabilize ductwork across wide rooftop spans
RTSH | Roof Cable Tray Support | Solar Cable Tray | Cable Tray Roof Supports | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

(8) CABLE TRAY SUPPORTS

  • Elevate cable trays serving rooftop equipment
  • Organize power and data routing infrastructure
  • Support distributed electrical pathways across roof
Rooftop Walkway | RTS | Rooftop Support Systems | a Division of Eberl Iron Works, Inc. | Buffalo, NY

ROOF WALKWAYS

  • Define protected service paths across expansive rooftops
  • Protect rubber roof membrane from direct foot traffic
  • Provide even dispersal of weigh across roof surface
Wind and Seismic Anchoring and Bracing Solutions | Rooftop Support Systems | RTS | a Division of Eberl Iron Works, Inc. | Buffalo, NY

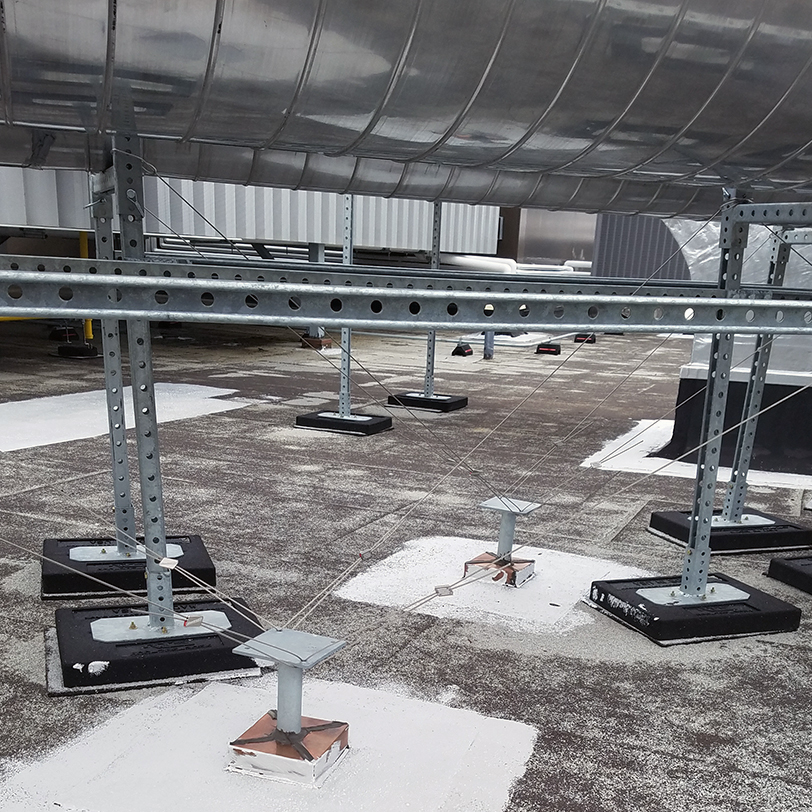

ROOFTOP WIND & SEISMIC

  • Stabilize rooftop systems in high-wind zones
  • Restrain mechanical infrastructure during seismic events
  • Protect critical cooling assets from displacement
RTSCOR Rooftop Access Ramp Application Shot | RTS | Rooftop Support Systems | a Division of Eberl Iron Works, Inc. | Buffalo, NY

CROSSOVER RAMPS

  • Allow smooth movement over piping, conduit & obstacles
  • Maintain service access without disrupting layouts
  • Improve technician safety across obstructed pathways

Why partner with rooftop support systems

Data center construction requires coordination, consistency, and rooftop systems that align with strict project specifications. RTS supports these projects with structured product categories that work together across large-scale mechanical layouts, helping teams maintain clarity from design through installation.

  • Delegated Design
    Through delegated design services, RTS can design and engineer the complete rooftop support system, providing coordinated layouts and submittal documentation aligned with project requirements.
  • Integrated Rooftop Support Solutions
    Platforms, supports, walkways, and restraint solutions are designed to function together across the roof, reducing layout conflicts between trades.
  • Application-Focused Support Planning
    Solutions are applied with consideration for dense cooling layouts and phased build-outs common in data center environments.
  • Installation-Aware Approach
    Products are selected and configured with real rooftop sequencing and contractor workflow in mind.
  • Alignment with Structural and Mechanical Design
    Support strategies account for structural tie-in requirements and mechanical routing across the project.
  • Consistency Across Large Rooftop Layouts
    Standardized support approaches help maintain order and repeatability across expansive mechanical installations.
